2014 & 2015 Lagoon 450

Replacing a catamaran that has come to be seen as a benchmark is no easy task. But the VPLP architects, in partnership with Lagoon and the celebrated Nauta Design studio, have been brilliantly successful in creating the new Lagoon 450.

• Polyester and high quality anti osmotic resin
• Hull and deck laminated by infusion
• Balsa core hull, solid laminate under water line, white gel coat
• Balsa core bridge deck and deck
• Solid laminate inner liners and deck
• Laminated marine plywood bulkheads

• Storage locker on aft cockpit portside
• Big storage locker
• Access to the windlass and chain locker by a vertical pannel
• Deck light on mast
• Locker on starboard side (genset as an option)
• Sun pad
• Settee
• Hardware
• 8 mooring cleats
• 1 winch size 60 on starboard side of helm for mainsail halyard and reefing lines and genoa
• 1 winch, size 50,on port side for genoa halyard, spi (option), toping lift
• 1 winch, size 60, for genoa on port side1 winch, size 50,for main sheet, traveller and furler
• Vertical axe windlass 12V 1700W in anchor locker, with 12 mm gypsy
• Trampoline with knot-less nylon netting
• Extern stern pulpits
• Inboard stern pulpits including on portside flagpole fittings and buoy support
• Composite forward longitudinal beam with recessed chain run and mooring cleat
• Aluminium crossbeam with furler genoa chain plate, anchor roller and navigation lights
• Mainsheet traveller track and ball-bearing car
• 2 genoa tracks with genoa car and stopper

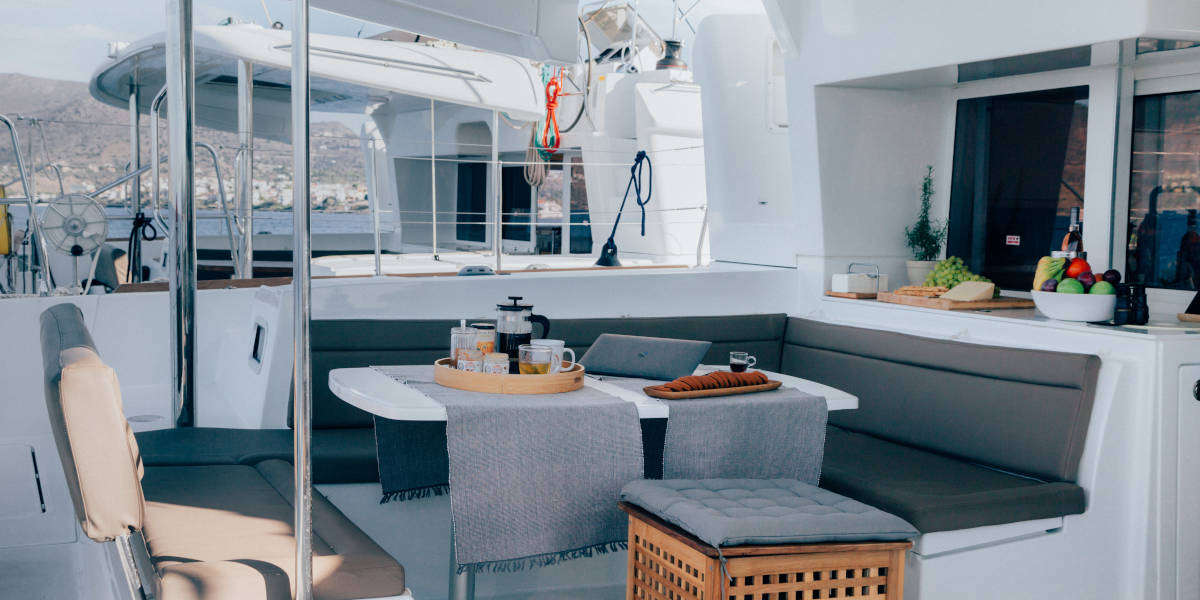

• Large cockpit usable as deck salon, protected by fixed composite bimini with recessed cockpit lighting
• U-shape foredeck seating area with technical generator locker on the front
• Removable wood varnished cockpit table accommodates 8 / 10 people, with protective cover
• 2 storage lockers in stern crossbeam
• Large storage locker with possibility to install extra (fridge, icemaker, etc…)
• Synthetic resin countertop
• Sliding window between cockpit and galley
• Direct access from cockpit to helm station on starboard side
• Lazy boy on starboard side with storage locker
• Bin with upper access and front door
• Storage locker with top access (70 liters / 18 gallon US ) with drainage
• Aeration hatch – Opening roof on the fly for cockpit aeration
• Storage for 2 gas tanks on starboard side of the cockpit
• Built-in storage area for cockpit table in bimini ceiling
• Polyester non streaming toe rail on the cockpit sides

Salon

• Large main salon with panoramic view – standing headroom approx: 2,05 m / 6’9”
• Steel pillar with fabric cover
• Varnished coffee table that can be swapped with the large cockpit table
• Seating for 5 / 6 people
• Storage compartments under bench seats
• Locking aluminium sliding cockpit door with open/closed positions
• 2 opening hatches on forward windows
• Curtains on forward salon windows

Aft Cabins

• Queen-size berth (2,04m / 6’7”x 1,60m / 5’2” at widest point)
• Semi-island berth
• 1 drawer under berths.
• 1 hanging lockers
• 1 low shelf
• Shoes storage in the floor
• Ceiling led spotlight
• 2 reading lights per berth
• 2 bed tables with storage
• 1 opening deck hatch
• 1 opening port hole
• 1 large hull window in plexiglass
• 1 opening escape hatch
• Curtains on portholes, hatches and fixed one-way windows

Forward cabins

• Transformable double berth or 2 simple berths
• double berth version 2.04 m x 1.63 m x 1.16 on the floor / 6’7” x 5’3” x 3’8” on the floor
• 2 simple berths version 2.06 m x0.69 m x 0.58 m on the floor / 6’75” x 2’26” x 1’9” on the floor
• 2 drawers under berths
• 2 space storages
• 1 bookshelf
• 1 bed table with storage and shoes storage
• Hanging lockers and shelves
• LED ceiling lights
• 2 reading lights per berth
• 1 opening deck hatch
• 1 opening port hole
• 1 large hull window
• Curtains on portholes, hatches and fixed one-way windows
• 1 mirror
• 3 lockers storage under the berth

Heads

• Moulded GRP units with white laminate walls – standing headroom 2,04m /6’9”
• Washbasin with mixer tap / shower
• Full-size marine toilet
• 1 holding tank with gravity drain/deck pump out in the aft port head
• Mirror
• Storage locker and 2 mirror doors
• Ceiling lights and spotlights over the mirror
• Forward heads access from cabin
• Synthetic resin countertop
• Separated shower
• Shower grating
• 1 opening deck hatch
• Technical access under washbasin

• Galley in main salon to starboard with directaccess to cockpit through sliding window
• White synthetic resin countertop
• Double stainless steel sink with chrome-plated mixer tap hot and cold water
• Integrated dish drainage area.
• Cutlery drawer
• Storage under sink
• 3 burner stove / oven with grill stainless steel
• 12V fridge 130L / 34 US Gallons, front loading

• Engine hatch gas struts
• Yanmar 2 x 53 HP saildrive diesel engines
• Engine controls at helm station
• Soundproofed engine compartments, soundproof access panels
• Electrical extractor for ventilation
• Sea water filters
• Lights

• Main 12V electrical panel starboard side of salon next to companionway with wood protection
• LED lights
• Ammeter, voltmeter, circuit breakers, back lighting, water gauge, 12V outlet, fuel gauge
• 2 engine start batteries: 12 v- 110 Amp
• 3 house batteries: 12 v-140 Amp

• 1 dacron full roach full batten mainsail
• Lazy jacks & bag
• 1 furling genoa with UV protection

Standing Rigging

• Aluminium mast with mainsail track and ball-bearing
• Double pushing spreader rig
• 1 aluminium boom
• 2 shrouds with chafe guards
• 2 lower shrouds
• 1 forestay with furler for genoa
• 2 mainsail lazy-jacks for battened main sail

Running Rigging

• 1 double-purchase spectra mainsail halyard
• 1 spectra genoa halyard
• 1 mainsail sheet pre-stretched
• 2 genoa sheets pre-stretched
• 3 mainsail reefing lines pre-stretched
• 1 genoa furling line pre-stretched
• 2 mainsail traveller car control lines pre-stretched
